Product overview
Four colors,
built for non-woven & film
The YTL 41000 is a four-color stack-type flexo printing machine designed for converters printing non-woven bags, paper packaging and flexible films. It prints non-woven fabric (15–120 g), paper (15–350 g/m²), PVC, OPP, BOPP, PE, NY, PET and CPP films at 10–70 m/min, with a 950 mm print width.
The press comes with a double unwinder and double rewinder, each with auto tension and air shafts, plus an automatic EPC web guide. Its printing unit uses metal anilox rollers, corrosion-resistant rubber rollers and chrome plated rollers with a printing cylinder; a ceramic anilox roller with a single doctor blade is available as an option for finer ink control.
Drive and reliability are the focus of this model: helical gear plus belt drive runs quietly and holds register at ±0.25 mm, NSK bearings are used throughout, and the printing roller bases and all gears receive a phosphating anti-rust treatment. A 20 kW drying system with top circulation drying box and station dryers keeps ink set at speed.
Standard electricals use a Siemens main motor with a Delta inverter, Omron relays and temperature controller, CHNT contactors and breakers, and Schneider buttons — a practical, easy-to-maintain specification for daily production.
Technical specifications
Spec sheet
Working parameters for the YTL 41000. Final configuration is matched to your substrate and output target.
| Model | YTL 41000 |
|---|---|
| Max. Width of Material | 1000 mm |
| Max. Width of Printing | 950 mm |
| Materials | Non-woven 15–120 g · Paper 15–350 g/m² · PVC 15–120 μm · OPP/BOPP 10–100 μm · PE 10–150 μm · NY 15–120 μm · PET 10–100 μm · CPP 15–100 μm |
| Printing Colors | 4 (4+0, 3+1, 2+2) |
| Length of Printing | 220 – 1000 mm (one 400 mm cylinder set free) |
| Mechanical Speed | 10 – 100 m/min |
| Speed of Material Printing | 10 – 70 m/min |
| Overprint Precision | ±0.25 mm |
| Plate Thickness | Resin 1.14/1.7/2.28/2.54/2.94 mm · Rubber 3.94 mm |
| Printing Unit | Metal anilox roller · rubber roller · chrome plated roller · printing cylinder (ceramic anilox + single doctor blade optional) |
| Unwind | Double unwind · max dia. 600 mm · auto tension (magnetic powder with fan 2.5 kg ×2) · EPC 1 set · air shafts 2 pcs |
| Traction | 2 zones · aluminum + chrome plated rollers |
| Drying | 20 kW · blowing first, then heating · top circulation drying box + station drying |
| Electrical | Main motor 3 kW + 3.7 kW inverter · 380V / 3PH / 50Hz · Siemens main motor · Delta inverter · Omron relays/temperature controller · CHNT contactors/breakers · Schneider buttons · NSK bearings |
| Rewind | Double rewind · max dia. 600 mm · auto tension (magnetic powder 5 kg ×2) · air shafts 2 pcs |
| Machine Weight | 3500 kg |
| Machine Dimension (L×W×H) | 4.8 × 2.0 × 2.8 m |
Working principle
How the YTL 41000
prints your web
A straightforward stack layout: unwind, print through four stations, dry, rewind — with controls that keep register stable on long runs.

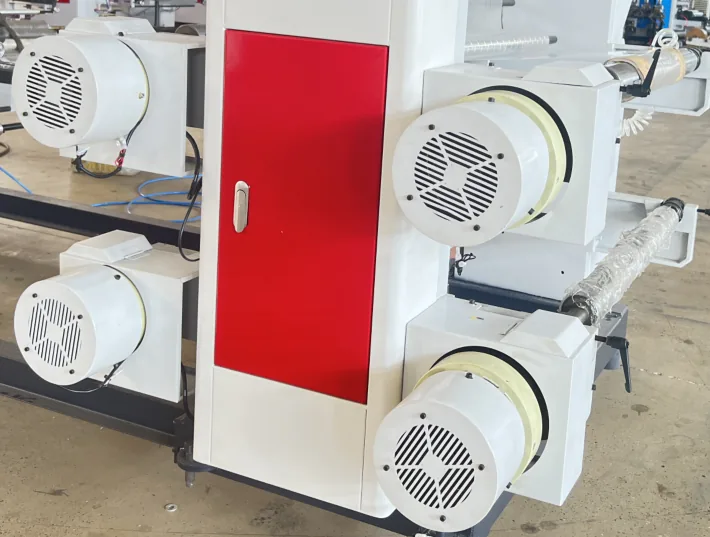

Double roll stand, steady tension
Two unwind positions with air shafts and auto tension (magnetic powder with fan) let operators load the next roll without stopping. The automatic EPC web guide keeps the web centered before printing.

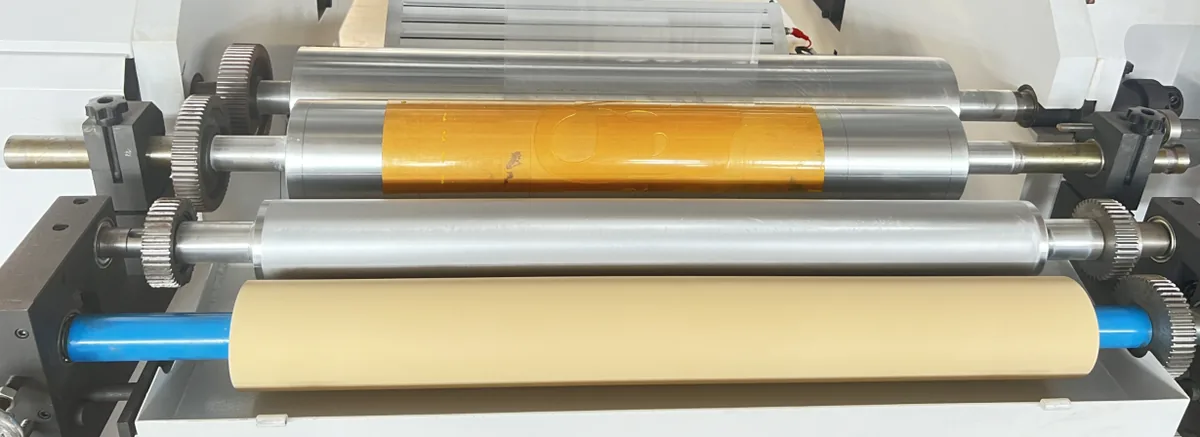

Four stations, one stack
Each color station transfers ink from the metal anilox roller to the plate on the printing cylinder, with the chrome plated roller supporting the web. Corrosion-resistant rubber rollers keep contact stable on non-woven and film.

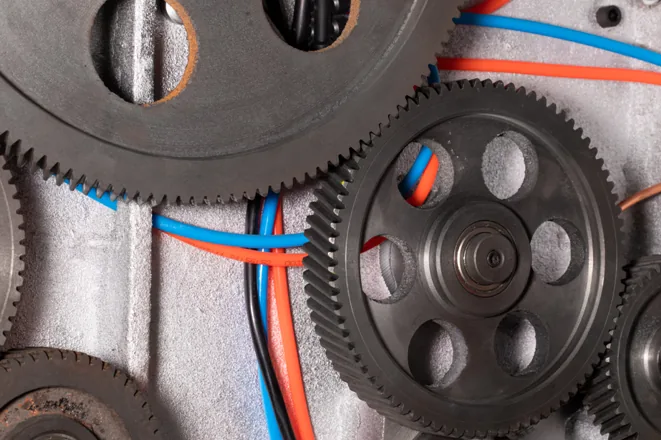

Helical gears plus belt drive

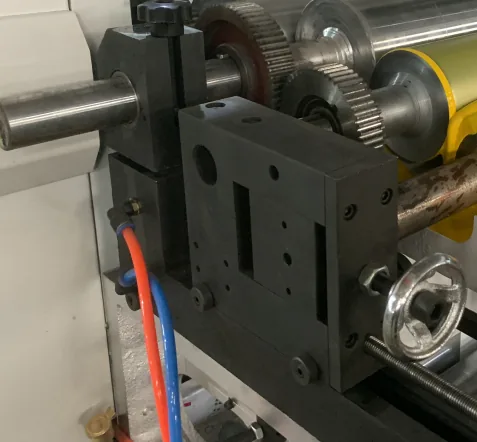

Helical gears and belt drive turn all stations in synchronization. NSK bearings and phosphated, antirust-treated gear bases keep the drive quiet and precise over long shifts.
Set the ink between stations
A 20 kW system blows first and then heats — a top circulation drying box plus per-station dryers — so water-based inks stay sharp without slowing the line.
Manual register, ±0.25 mm precision
Register is adjusted manually per station with pneumatic roller adjustment. For customers who want automated color control, a ceramic anilox with doctor blade and motor register upgrade is available.
Double rewind keeps production flowing
Two rewind positions with magnetic powder tension collect finished printed rolls, ready for bag making, lamination or slitting.
Price & quotation
Price on request — factory-direct
Every YTL 41000 Four-Color Flexo Printing Machine is built to your configuration, so the final price depends on the options you choose. The main price drivers are:
- Machine width and output — wider and faster configurations cost more.
- Layer, color or sealing-lane count.
- Automation level — servo drives, automatic features and PLC control.
- Certification and market adaptation — CE, EAC, 220V/60Hz or 380V/50Hz.
- Shipping terms — FOB Ningbo/Shanghai, CIF or door-to-door, plus installation and training.
Send us your target output, film/bag size and voltage — our engineers reply with a factory-direct quotation within one business day.
Get a Quote →Read the 2026 flexo & gravure printing machine price guide for indicative factory-direct ranges.
Buyers ask
Frequently asked
questions
How much does this machine cost?
Factory-direct pricing depends on your configuration — width, output, layer or color count and automation level. Send us your target specs and we confirm an exact price within one business day.
What affects the price of this machine?
The main price drivers are machine size and output, number of layers or colors, servo versus stepper drives, automation features, certifications (CE/EAC), voltage adaptation, and shipping and installation terms.
What materials can the YTL 41000 print?
The YTL 41000 prints non-woven fabric (15–120 g), paper (15–350 g/m²), PVC, OPP, BOPP, PE, NY, PET and CPP films. It is especially popular for non-woven bag printing.
How many colors does the YTL 41000 support?
Four color stations with flexible splits: 4+0, 3+1 or 2+2. One side or two sides can be printed in a single pass.
What is the printing speed of the YTL 41000?
Material printing speed is 10–70 m/min (mechanical speed up to 100 m/min), with overprint precision of ±0.25 mm.
Which plates and print lengths are supported?
It accepts resin plates of 1.14/1.7/2.28/2.54/2.94 mm and rubber plates of 3.94 mm. Print length range is 220–1000 mm, with one 400 mm printing cylinder set included.

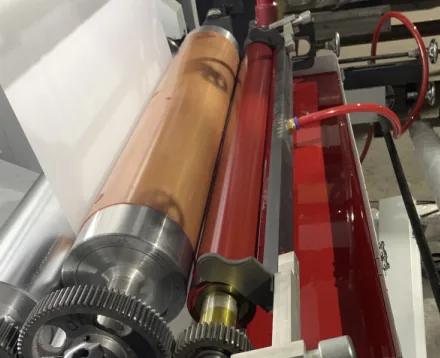

Can the machine run with a ceramic anilox and doctor blade?
Yes. The standard printing unit uses metal anilox rollers and rubber rollers; a ceramic anilox roller with a single doctor blade is available as an option.
Is the YTL 41000 CE certified and supported?
Yes. E-SHION machinery is assessed to the Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU, and every line includes installation, training and 24/7 technical support.
