Bag making line
T-Shirt Bag Making Machine
If you manufacture plastic bags, a t shirt bag making machine is your core asset.
Video
Machine in action
T-Shirt Bag Making Machine in Action
High-speed t-shirt bag making machine (vest bag making machine) from a CE certified manufacturer: servo-driven, automatic punching and stacking, 80-400…
T-Shirt Bag Making Machine in Action (Video 2)
Product overview
What it is,
what it makes
If you manufacture plastic bags, a t shirt bag making machine is your core asset. Choosing the wrong one leads to downtime, waste, and lost customers. After analyzing hundreds of factories and studying the GFQ‑800 spec sheet (a 4‑lane model with automatic punching), I’ve compiled 7 factors that guarantee you buy the right t shirt bag making machine. These principles apply whether you need a single‑lane or multi‑lane machine. Focus on them, and you’ll avoid costly mistakes. A t shirt bag making machine without servo control is outdated. Servo motors maintain bag length accuracy within ±1 mm even at top speed. The GFQ‑800 uses a Hansu servo motor plus an inverter for the main drive. This combination reduces scrap and ensures consistent output. Ask the supplier: “Does the film feeding use a servo motor?” If the answer is no, the machine cannot achieve the speed and precision you need for competitive production. The term t shirt bag making machine covers both single‑lane and multi‑lane versions. For high volume, choose a 4‑lane machine like the GFQ‑800. It runs four rolls simultaneously, producing up to 480 bags per minute. For smaller orders, a 2‑lane model may suffice. But remember: a t shirt bag making machine with multiple lanes saves labor and floor space. T‑shirt bags need a hanger hole. A cheap t shirt bag making machine requires a separate operator to punch manually, adding cost and inconsistency. The GFQ‑800 integrates an automatic puncher that works in sync with sealing and cutting. Two cylinders and a mechanical arm ensure reliable punching. When you evaluate a t shi
Technical specifications
Spec sheet
Working parameters for the t shirt bag making machine. Final configuration is matched to your material and output target.
| Parameter | Value |
|---|---|
| Model | GFQ-600/800/1000/1200 |
| Width of bag-making | 550mm~1150mm |
| Length of bag-making | 700mm~1800mm |
| Speed of bag-making | (60~120)x2 bags/min~(60~120)x(4/6) bags/min |
| Film thickness | 0.01-0.15 mm |
| Raw Material | HDPE/LDPE |
| Machine weight | 700kg~1600kg |
| Machine dimension(L×W×H) | 3200X1000X1700mm~4500X1900X1800mm |
How it works
How it works,
step by step

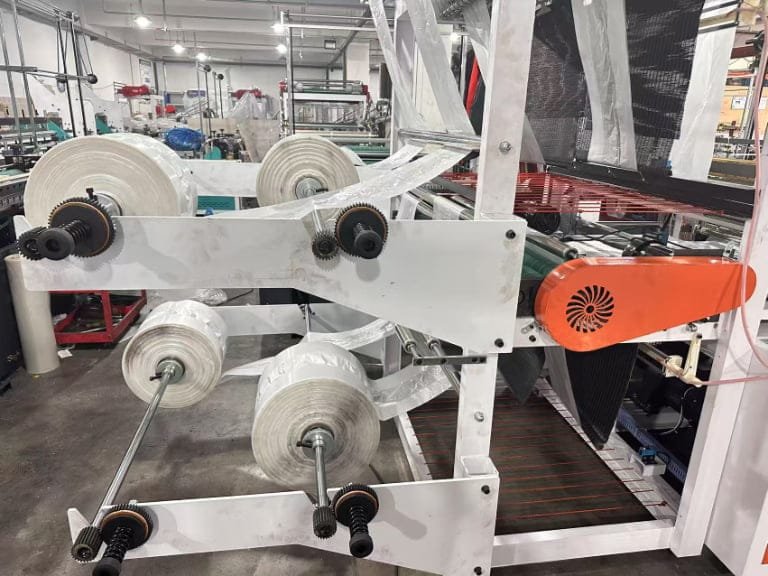

Material Feed Setup
HDPE or LDPE plastic rolls are mounted on the unwinder and threaded through the tension system. The film thickness range of 0.01–0.15 mm is fed into the machine at controlled speeds to prevent stretching or misalignment during operation.
Servo-Driven Sizing
Hansu servo motors and an inverter drive the main shaft to set bag width between 550 mm and 1150 mm and length between 700 mm and 1800 mm. Closed-loop feedback maintains length accuracy within ±1 mm across all production runs.

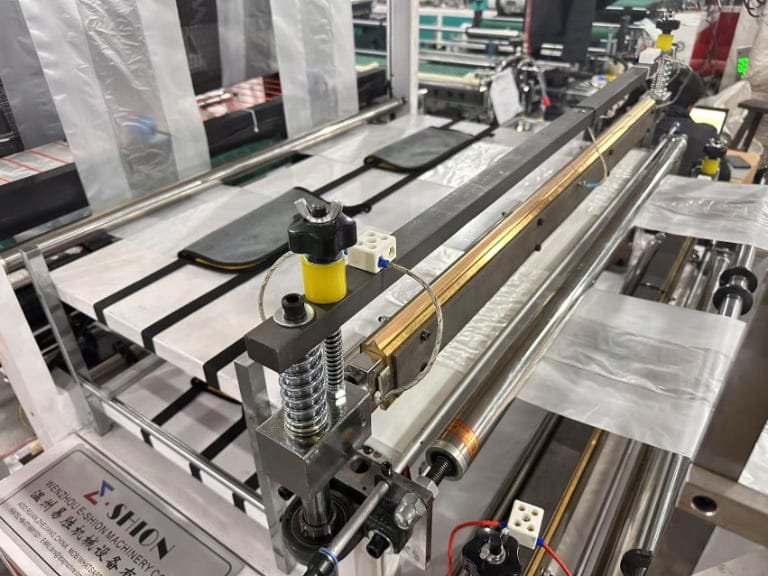

High-Speed Sealing & Punching
The heated sealing bars fold and weld the film edges while automatic punching units cut the handle slots. Multi-lane configurations run at speeds of (60–120)×2 to (60–120)×4 bags per minute depending on the selected model.

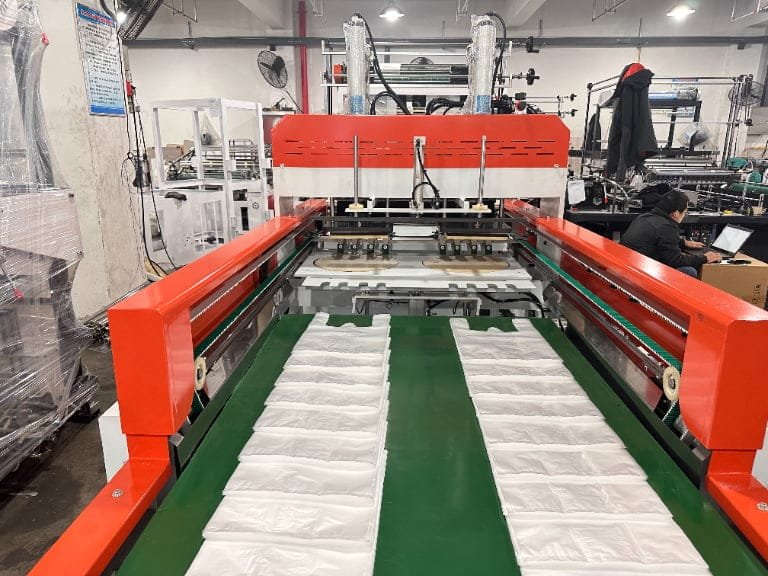

Stacking & Discharge
Finished t-shirt bags drop onto a conveyor or stacking table where they are counted and bundled for packaging. The complete assembly fits within a footprint of 3200–4500 mm in length and weighs between 700 kg and 1600 kg based on lane count.
Price & quotation
Price on request — factory-direct
Indicative factory-direct range: $9,000 – $35,000
Every T-Shirt Bag Making Machine is built to your configuration, so the final price depends on the options you choose. The main price drivers are:
- Machine width and output — wider and faster configurations cost more.
- Layer, color or sealing-lane count.
- Automation level — servo drives, automatic features and PLC control.
- Certification and market adaptation — CE, EAC, 220V/60Hz or 380V/50Hz.
- Shipping terms — FOB Ningbo/Shanghai, CIF or door-to-door, plus installation and training.
Send us your target output, film/bag size and voltage — our engineers reply with a factory-direct quotation within one business day.
Get a Quote →Read the 2026 plastic bag making machine price guide for indicative factory-direct ranges.
Buyers ask
Frequently asked
questions
Are you the factory or a trading company?
We are the manufacturer: Wenzhou E-SHION Machinery Co., Ltd. Factory tours and video walk-throughs are welcome.
How is quality checked?
Each machine is assembled and test-run before shipment; test videos, CE documents and a final inspection report are provided.
What are the payment terms?
Terms are confirmed in the proposal — typically T/T with a deposit and the balance before shipment.
What is the lead time?
Lead time depends on the configuration and is confirmed in the proposal before production starts.
What after-sales support do you provide?
Installation supervision, operator training, 24/7 support with a 4-hour average first response, and OEM spare parts shipped globally.
What can this machine produce?
See the Applications section on this page for the typical products this machine is configured for.
How much does this machine cost?
Factory-direct pricing depends on your configuration — width, output, layer or color count and automation level. Send us your target specs and we confirm an exact price within one business day.
What affects the price of this machine?
The main price drivers are machine size and output, number of layers or colors, servo versus stepper drives, automation features, certifications (CE/EAC), voltage adaptation, and shipping and installation terms.
What bag sizes can this machine produce?
Bag size ranges are listed in the spec sheet — typically up to the width and length shown for the model. The machine is adjusted for your bag dimensions during commissioning.
What is the production speed?
Speed is shown in the spec sheet (cycles per minute). Actual output depends on bag size and film material; daily output estimates are included in the quotation.
How long is delivery?
Typical delivery is 15–30 days from order confirmation, depending on the configuration and current production schedule. We confirm the exact lead time in the quotation.
Is the machine CE certified?
Yes. Our machinery is assessed to the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The certificate of conformity is provided with the machine.
Can it run different bag types?
Each model is built for a specific bag family (T-shirt, zipper, garment, garbage, side-seal, etc.). If you produce multiple bag types, tell us your mix and we will recommend the right machine or line.
Do you provide installation and training?
Yes. Our engineers supervise installation and commissioning on site, run the first production trials and train your operators — on-site or remotely.
Related products
More from
our line-up
Automatic Zipper Bag Making Machine
If you are in the packaging industry—whether for food, cosmetics, or hardware—you know that zipper bags are everywhere.
Express Bag Making Machine Dhl
The express bag making machine (also commonly referred to as a courier bag making machine) is the backbone of the modern e-commerce logistics chain.
Flower Bag Making Machine
The ES-YX800 is a high-speed automatic flower bag making machine designed specifically for producing flower bouquet sleeves and bags.
Hs Side Sealing Bag Making Machine
A side sealing bag making machine is the industry standard for producing high‑strength side seal bags used in retail, food, e‑commerce, and garment packaging.
Applications
What this machine produces

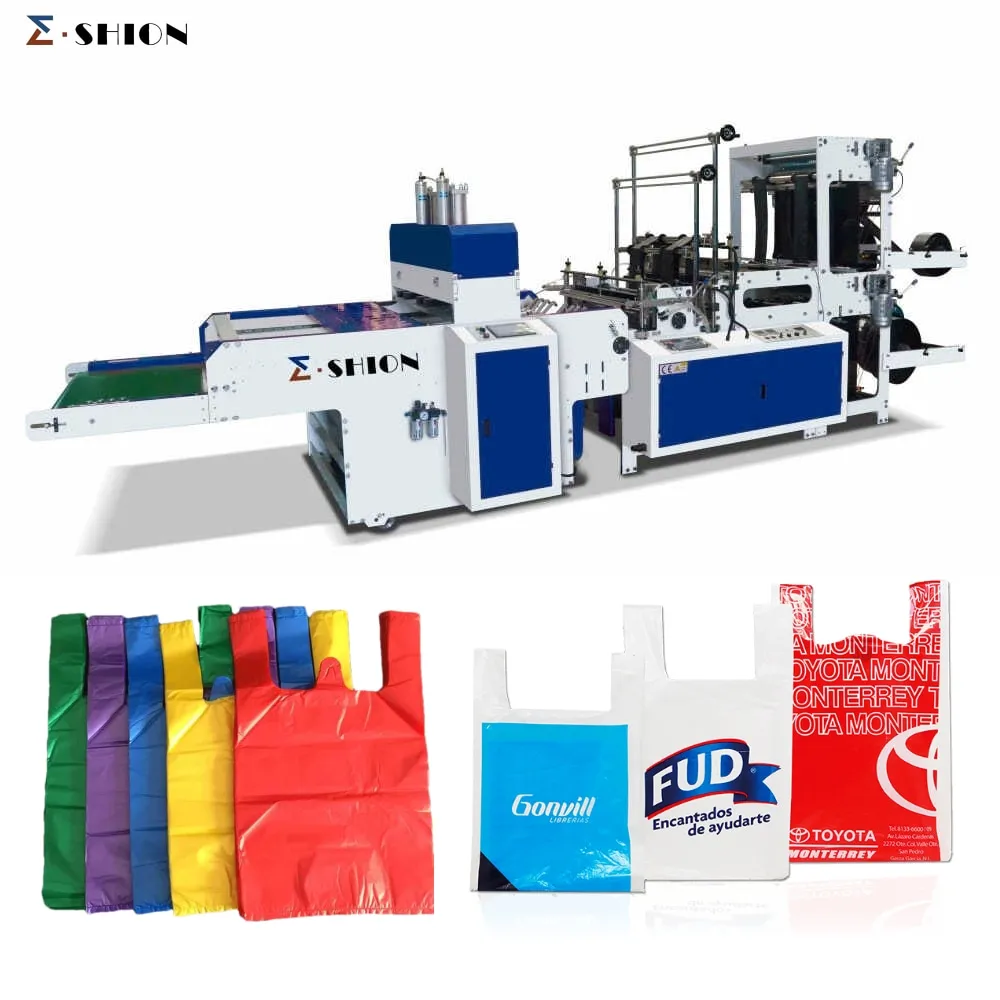

T-shirt and vest bags for retail and grocery use at high speed from HDPE and LDPE film.
