Product overview
What it is,
what it makes

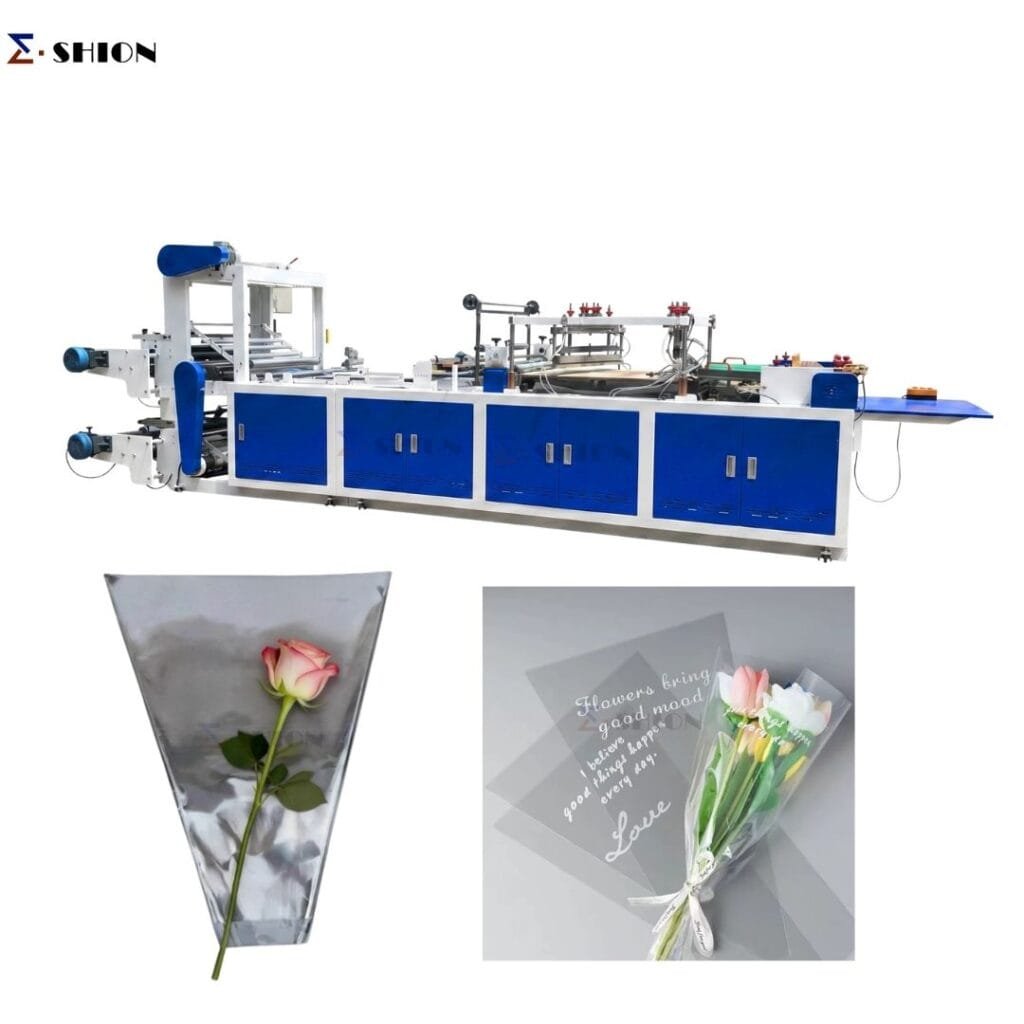

The ES-YX800 is a high-speed automatic flower bag making machine designed specifically for producing flower bouquet sleeves and bags. This industrial equipment takes rolled plastic film (BOPP, CPP, or similar materials) and converts it into precisely shaped tapered sleeves at speeds reaching up to 120 pieces per minute. As a leading flower bag making machine manufacturer, the ES-YX800 delivers consistent quality and reliable performance for high-volume flower packaging production. The machine features an integrated color mark tracking servo system that ensures accurate pattern alignment on printed film, making it ideal for manufacturers producing decorative floral packaging with branded designs. 1. Material Unwinding RackHeavy-duty roll stand with brake tension control. Guides film smoothly through the production line. 2. Heat Sealing & Forming SectionPrecision heat sealing blades with adjustable pressure. Teflon-coated heating plate for even seal quality. 3. Color Mark Tracking SystemServo-controlled photoelectric sensor automatically corrects film positioning. Reduces material waste by up to 3%. 4. Cutting & Separating UnitSharp rotary blade cutting mechanism for clean separation with consistent sizing. 5. Finished Product ConveyorBelt-driven output table collects finished bags for packaging. 6. Optional Drilling DeviceAdd-on punching unit for ventilation holes in flower sleeves. Finished Product Examples: Tapered bouquet sleeves (20-45cm) | V-shape flower bags | Perforated breathable covers | Printed promotional floral packaging Q: What film materials can the ES-YX800 pr
Technical specifications
Spec sheet
Working parameters for the flower bag making machine. Final configuration is matched to your material and output target.
| Parameter | Specification |
|---|---|
| Model | ES-YX800 |
| Maximum Bag Width | 800mm (customizable) |
| Bag Length | Adjustable per customer requirement |
| Production Speed | 80-120 pcs/min |
| Film Material | BOPP, CPP, PE (30-50 micron) |
| Control System | PLC with color mark tracking servo |
| Power Supply | 220V / 50Hz |
| Machine Dimensions | Approx. 4500mm × 1200mm × 1500mm |
| Frame Material | Heavy-duty stainless steel |
How it works
How it works,
step by step
Film Loading and Tension Control

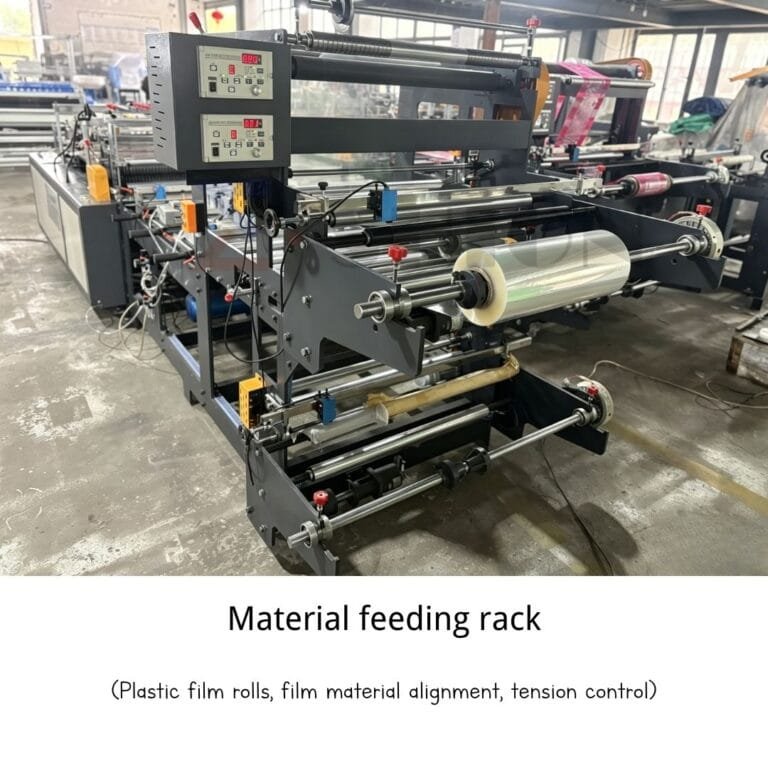

Rolled plastic film (BOPP, CPP, or PE, 30-50 micron) is mounted on the heavy-duty unwinding rack. Brake tension control regulates feed pressure to ensure smooth, wrinkle-free film progression into the processing line.
Servo Tracking System
A PLC-integrated color mark tracking servo system detects printed marks on the film to maintain accurate pattern registration. This mechanism adjusts film position dynamically, ensuring precise alignment for branded floral designs during continuous operation.
Tapered Sleeve Shaping

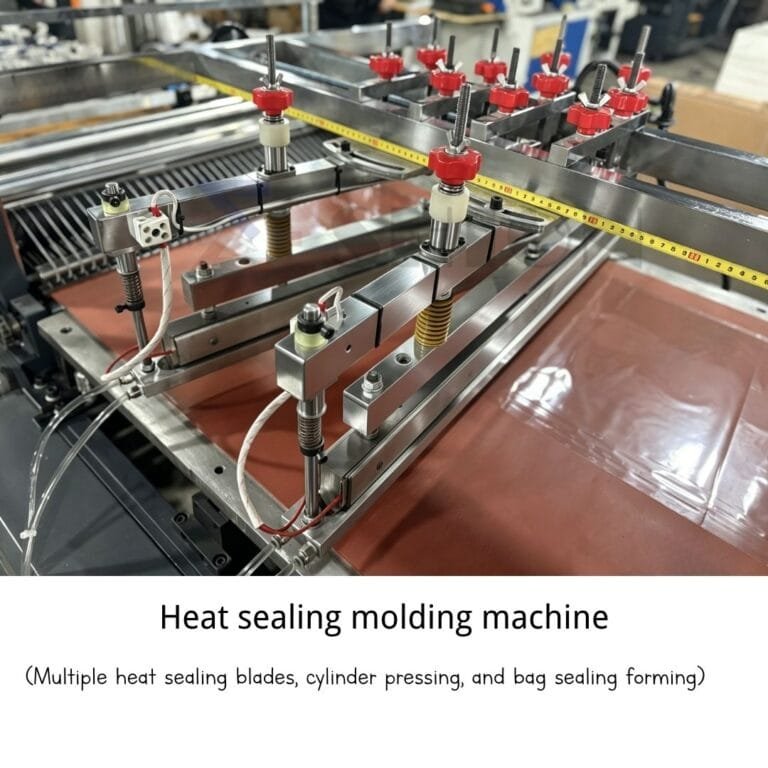

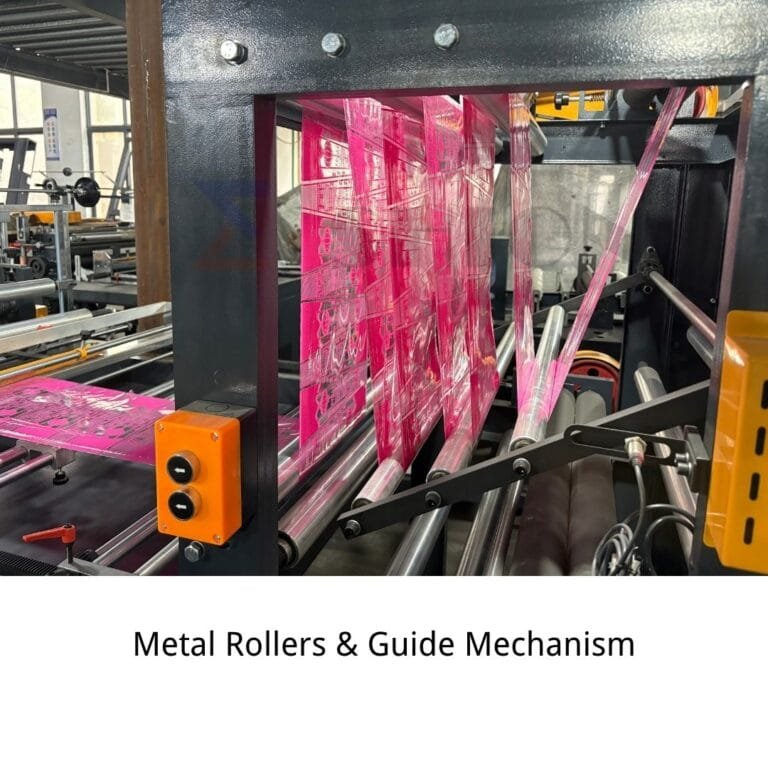

The film is guided through forming rollers to construct tapered sleeves with a maximum width of 800mm. Edge sealing units fuse the material sides together to create the bag structure while the bag length remains adjustable per customer specifications.
Precision Cutting and Discharge
The machine cuts sealed sleeves to the set length and discharges finished flower bags at production speeds of 80 to 120 pieces per minute. The automated discharge process delivers consistent output suitable for high-volume packaging lines.
Price & quotation
Price on request — factory-direct
Every Flower Bag Making Machine is built to your configuration, so the final price depends on the options you choose. The main price drivers are:
- Machine width and output — wider and faster configurations cost more.
- Layer, color or sealing-lane count.
- Automation level — servo drives, automatic features and PLC control.
- Certification and market adaptation — CE, EAC, 220V/60Hz or 380V/50Hz.
- Shipping terms — FOB Ningbo/Shanghai, CIF or door-to-door, plus installation and training.
Send us your target output, film/bag size and voltage — our engineers reply with a factory-direct quotation within one business day.
Get a Quote →Read the 2026 plastic bag making machine price guide for indicative factory-direct ranges.
Buyers ask
Frequently asked
questions
How much does this machine cost?
Factory-direct pricing depends on your configuration — width, output, layer or color count and automation level. Send us your target specs and we confirm an exact price within one business day.
What affects the price of this machine?
The main price drivers are machine size and output, number of layers or colors, servo versus stepper drives, automation features, certifications (CE/EAC), voltage adaptation, and shipping and installation terms.
What bag sizes can this machine produce?
Bag size ranges are listed in the spec sheet — typically up to the width and length shown for the model. The machine is adjusted for your bag dimensions during commissioning.
What is the production speed?
Speed is shown in the spec sheet (cycles per minute). Actual output depends on bag size and film material; daily output estimates are included in the quotation.
How long is delivery?
Typical delivery is 15–30 days from order confirmation, depending on the configuration and current production schedule. We confirm the exact lead time in the quotation.
Is the machine CE certified?
Yes. Our machinery is assessed to the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The certificate of conformity is provided with the machine.
Can it run different bag types?
Each model is built for a specific bag family (T-shirt, zipper, garment, garbage, side-seal, etc.). If you produce multiple bag types, tell us your mix and we will recommend the right machine or line.
Do you provide installation and training?
Yes. Our engineers supervise installation and commissioning on site, run the first production trials and train your operators — on-site or remotely.
