Bag making line

Garment Bag Making Machine

In today’s hyper-competitive retail environment, product presentation is no longer optional—it is a decisive factor in consumer purchasing decisions.

Product overview

What it is,
what it makes

In today’s hyper-competitive retail environment, product presentation is no longer optional—it is a decisive factor in consumer purchasing decisions. Packaging serves as the silent salesperson on crowded store shelves, communicating brand quality and professionalism before a single word is read. Within this critical ecosystem, the perforated plastic hanger bag has emerged as an indispensable packaging solution for apparel brands, textile manufacturers, and retail chains worldwide. At the heart of producing these essential retail assets lies a specialized industrial workhorse: the advanced garment bag making machine. Engineered specifically for processing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) films, this sophisticated system represents the convergence of precision engineering, production efficiency, and material science. It transforms simple plastic rolls into premium retail-ready packaging with remarkable consistency and speed. The defining technological breakthrough in modern garment bag production centers on cold-cutting methodology—a significant departure from conventional thermal sealing techniques. Traditional hot-knife systems apply intense heat to simultaneously seal and cut plastic film, which inevitably causes material degradation at the cut edge. This thermal stress manifests as unsightly beads, microscopic burrs, or film thinning along the perforation line—defects that compromise both aesthetic appeal and structural integrity. In contrast, the advanced garment bag making machine employs a mechanically driven, cryogenically stabilize

Technical specifications

Spec sheet

Working parameters for the garment bag making machine. Final configuration is matched to your material and output target.

ParameterValue
ModelGFQ
Max.length of cutting100-1500mm
Max.width cutting100-800mm
Cutting thickness0.01--0.10mm
Cutting speed30-100 bags/min
Main motor2.2kw
Machine weight900kg
Overall dimension (L×W×H)4000×1600×1300mm

How it works

How it works,
step by step

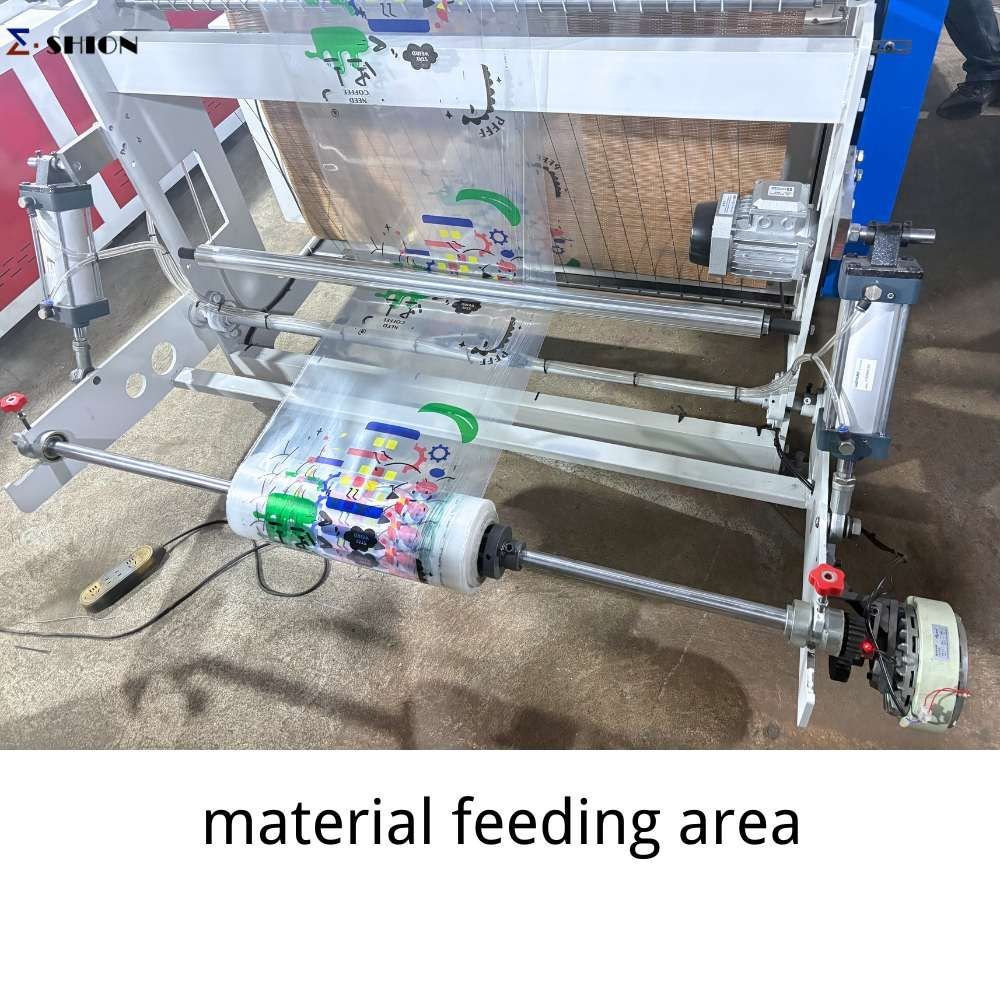

Step 01 — Material Feed

Load Raw Film

Unwind LDPE or HDPE film rolls and mount them onto the machine's input shaft. The system automatically feeds the continuous film web into the processing line for bag formation.

Step 02 — Dimension Setup

Set Cut Size

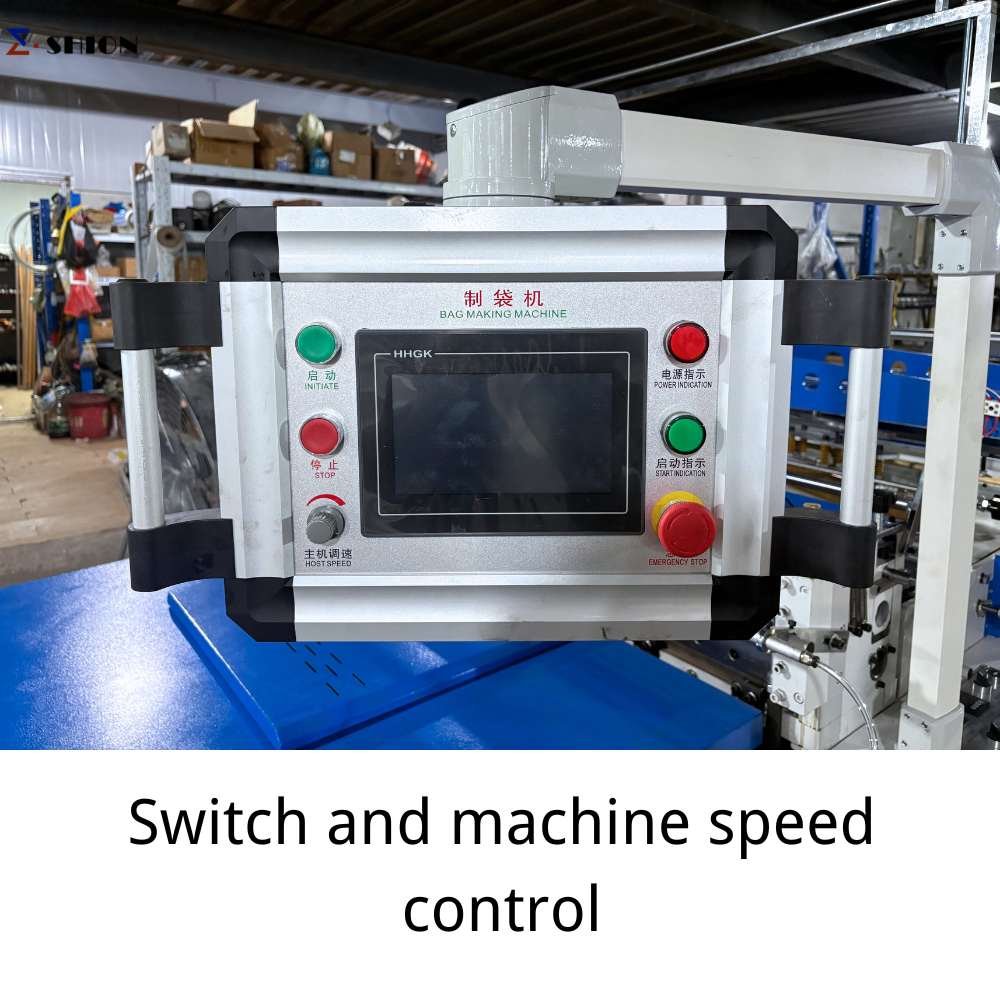

Program the control panel to define the cut length between 100mm and 1500mm and the maximum cut width of 800mm. The mechanism adjusts the film advance and sealing points to align with these parameters.

Step 03 — Perforation and Sealing

Create Hanger Bags

The unit punches a perforated hanger hole at the top of the bag and seals the side edges simultaneously. This process forms the durable garment bag structure required for retail hanging displays.

Step 04 — Production Run

Operate at Speed

Engage the main motor to run the cutting cycle at a speed of 30 to 100 bags per minute. The 2.2kW motor provides stable power delivery to maintain consistent output during continuous operation.

Step 05 — Thickness Processing

Handle Film Gauge

The machine accommodates film stocks with a cutting thickness range of 0.01mm to 0.10mm. Completed bags are discharged and stacked according to the processed material gauge for collection.

Price & quotation

Price on request — factory-direct

Every Garment Bag Making Machine is built to your configuration, so the final price depends on the options you choose. The main price drivers are:

  • Machine width and output — wider and faster configurations cost more.
  • Layer, color or sealing-lane count.
  • Automation level — servo drives, automatic features and PLC control.
  • Certification and market adaptation — CE, EAC, 220V/60Hz or 380V/50Hz.
  • Shipping terms — FOB Ningbo/Shanghai, CIF or door-to-door, plus installation and training.

Send us your target output, film/bag size and voltage — our engineers reply with a factory-direct quotation within one business day.

Get a Quote

Buyers ask

Frequently asked
questions

How much does this machine cost?

Factory-direct pricing depends on your configuration — width, output, layer or color count and automation level. Send us your target specs and we confirm an exact price within one business day.

What affects the price of this machine?

The main price drivers are machine size and output, number of layers or colors, servo versus stepper drives, automation features, certifications (CE/EAC), voltage adaptation, and shipping and installation terms.

What bag sizes can this machine produce?

Bag size ranges are listed in the spec sheet — typically up to the width and length shown for the model. The machine is adjusted for your bag dimensions during commissioning.

What is the production speed?

Speed is shown in the spec sheet (cycles per minute). Actual output depends on bag size and film material; daily output estimates are included in the quotation.

How long is delivery?

Typical delivery is 15–30 days from order confirmation, depending on the configuration and current production schedule. We confirm the exact lead time in the quotation.

Is the machine CE certified?

Yes. Our machinery is assessed to the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The certificate of conformity is provided with the machine.

Can it run different bag types?

Each model is built for a specific bag family (T-shirt, zipper, garment, garbage, side-seal, etc.). If you produce multiple bag types, tell us your mix and we will recommend the right machine or line.

Do you provide installation and training?

Yes. Our engineers supervise installation and commissioning on site, run the first production trials and train your operators — on-site or remotely.
