Product overview
What it is,
what it makes

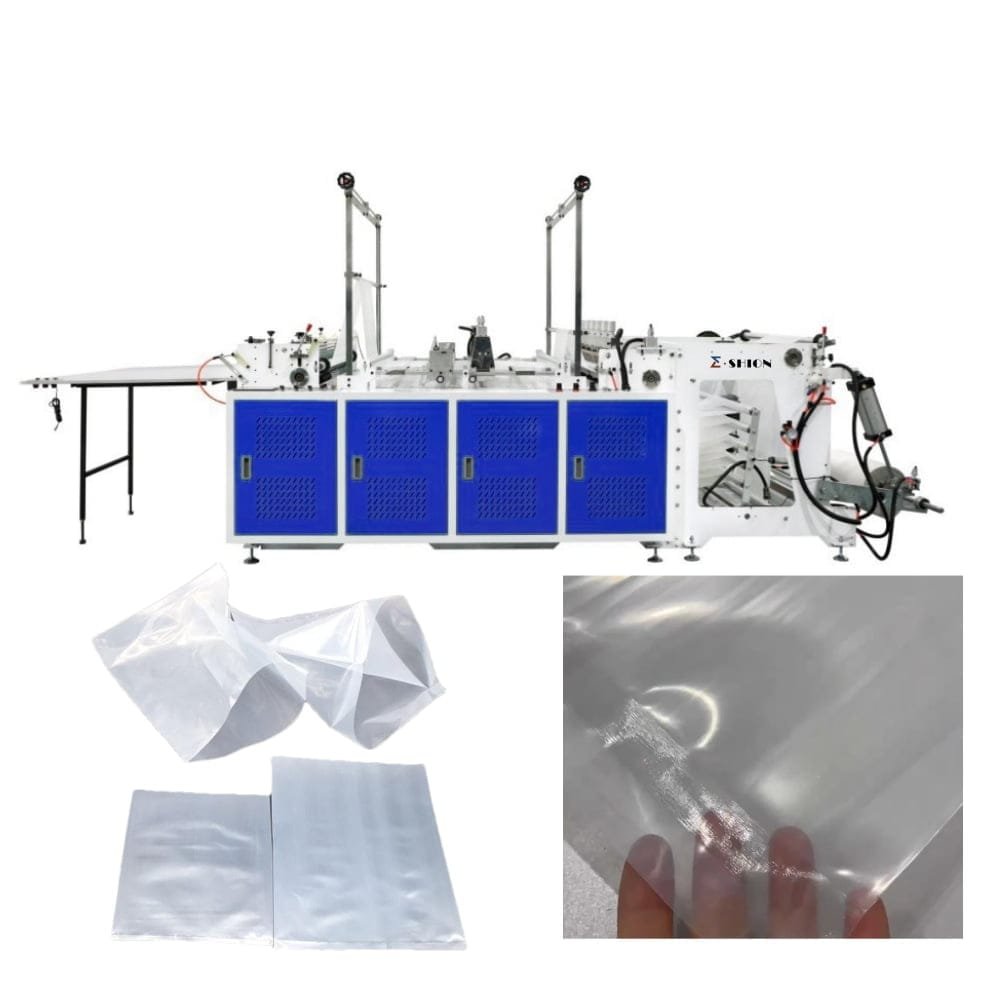

Our Non-stretch Heavy-duty Bag Making Machine is a professional and high-performance production equipment specially developed for heavy-duty packaging scenarios. It is specifically designed for producing flat bags, garment bags, and vacuum bags made of LDPE, HDPE, LLDPE and other tubular plastic films and thickened plastic films. As an ideal device for manufacturing a variety of heavy-duty packaging bags such as seafood bags and vegetable bags, this machine features multi-functional integration, realizing one machine for multiple uses and perfectly meeting the heavy-duty packaging needs of the aquatic product, agricultural, and textile industries. Advanced Intelligent Control: This bag making machine adopts a touch-screen PLC computer control system and a domestic servo motor feeding system. It boasts fast bag-making speed, high sealing and cutting precision, and excellent non-stretch performance. Equipped with functions like photoelectric tracking, automatic counting, arbitrary setting of fixed length/quantity, and automatic alarm/shutdown/restart, it ensures stable and efficient production. Stable & Energy-saving Servo Drive: The main drive utilizes a servo control system, offering advantages in stable operation, low noise, and energy savings compared to traditional frequency conversion speed regulation. The entire bag making machine‘s running speed is controlled by independent servo motors, which not only increases production speed but also ensures transparent and firm heat seals for hem bags, preventing bag damage from excessive heat. Automatic Constant Temperature Heat
Technical specifications
Spec sheet
Working parameters for the heavy duty bag making machine. Final configuration is matched to your material and output target.
| Parameter | Value |
|---|---|
| Model | GFQ 600/800/1000/1200 |
| Raw Material | PE |
| Width of bag-making | 550mm~1150mm |
| Length of bag-making | 1500mm |
| Speed of bag-making | 30~120 bags/min |
| Film thickness | 0.01-0.30mm |
| Machine weight | 2000kg |
| Machine dimension(L×W×H) | 3000x1800x1200mm |
How it works
How it works,
step by step
Servo-Controlled Film Loading
Raw PE tubular or thickened plastic films are mounted on the unwind shaft and advanced through the system via a precision servo motor drive. Automatic tension regulation ensures steady feed rates while accommodating film thicknesses between 0.01 and 0.30 mm.
PLC-Based Size Configuration
Operators input target measurements directly into the touch-screen PLC interface to set bag widths from 550 mm to 1150 mm and lengths up to 1500 mm. The control system synchronizes mechanical actuators to maintain exact dimensional tolerances throughout the run.

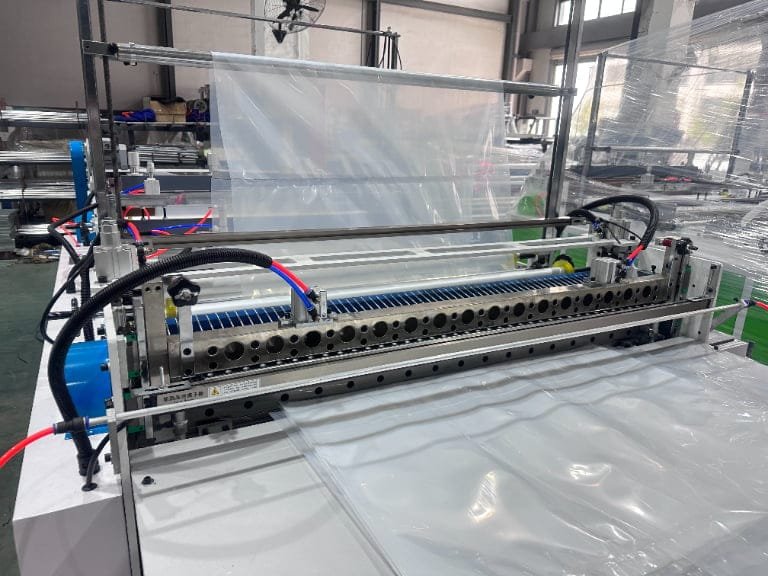

Automated Edge Fusion and Separation
Heated sealing bars press and melt the film edges to form permanent seams before a synchronized cutter divides the continuous web into individual units. This cycle repeats at adjustable production speeds ranging from 30 to 120 bags per minute.

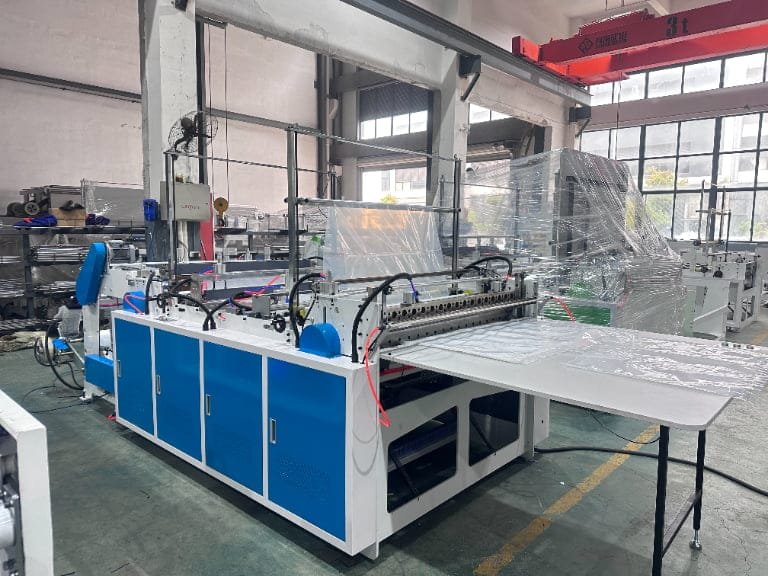

Stable Discharge and Stacking
Completed bags are guided off the main frame and collected in a designated discharge zone for manual or automated bundling. The machine’s 2000 kg mass and 3000 x 1800 x 1200 mm footprint provide structural rigidity to minimize vibration during continuous high-speed operation.
ES-L800MM series
Three-servo non-stretch
bag making machine

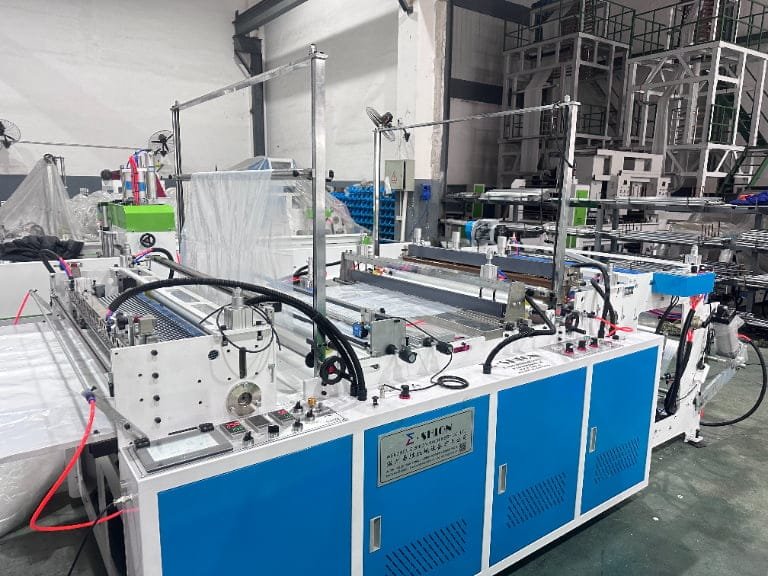

A dedicated heavy-package line for LDPE, HDPE and LLDPE tubular film: flat bags, garment bags, vacuum bags, and aquatic or vegetable heavy bags — with servo-driven feeding, automatic constant-temperature sealing and SICK registration.
What it is, what it makes
The ES-L800MM is designed for non-stretch bag production from thickened tubular films. Touch-screen PLC control with servo feeding keeps cut length accurate and stable; three heating systems (hot knife, both knife ends and heated base) seal thick film cleanly without sticking or scorching.
Key features
- Touch-screen PLC with servo motor feeding — fast bag making, accurate sealing and cutting, no film stretching.
- Independent servo control for running speed: stable, low noise and energy-saving.
- Automatic constant-temperature heating that stops below set temperature — firm, smooth, sealed bag mouths.
- 10 mm / 12 mm iron-plate frame with synchronous servo-driven front and rear rubber rollers.

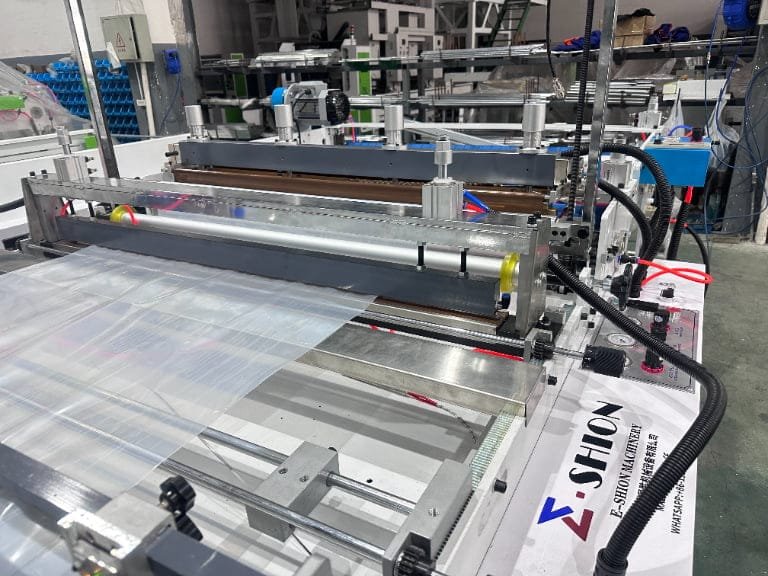

- Cold-press shaping knife after the ironing knife flattens the seal while it is still hot.
- Three heating systems: hot knife + both ends of the hot knife + heated base.
- German SICK color-mark tracking electric eye and automatic feeding.
Technical specifications
| Parameter | ES-L800MM |
|---|---|
| Bag width | 100 – 700 mm |
| Bag length | 100 – 2000 mm |
| Bag thickness | 0.01 – 0.30 mm |
| Servo motor (length setting) | 2.6 kW × 2 |
| Main servo motor | 2.6 kW × 1 |
| Unwinding motor / inverter | 1.1 kW / 1.5 kW |
| Heating power | 12 kW |
| Voltage | 220 V / 50 Hz |
| Packing size (L×W×H) | 2400×1650×1200 mm / 1600×1500×1400 mm |
| Machine weight | 1100 kg |
Key components
- PLC: Zhejiang Zhongxin; servo driver and motor: Shanghai Sihong.
- Pneumatic components: Zhejiang Hongyu; solenoid valves: Airtac (Taiwan).
- Color-mark electric eye: SICK (Germany); conveyor inverter: Shenzhen Kewo.
- Forged copper blade 62# — not easy to deform; breathable punch included.
Random accessories
- Springs ×100, tool box ×1, thermocouples ×2, heating pipe ×1, button ×1, relay ×1, Hall switch ×1.
Price & quotation
Price on request — factory-direct
Every Heavy Duty Bag Making Machine is built to your configuration, so the final price depends on the options you choose. The main price drivers are:
- Machine width and output — wider and faster configurations cost more.
- Layer, color or sealing-lane count.
- Automation level — servo drives, automatic features and PLC control.
- Certification and market adaptation — CE, EAC, 220V/60Hz or 380V/50Hz.
- Shipping terms — FOB Ningbo/Shanghai, CIF or door-to-door, plus installation and training.
Send us your target output, film/bag size and voltage — our engineers reply with a factory-direct quotation within one business day.
Get a Quote →Read the 2026 plastic bag making machine price guide for indicative factory-direct ranges.
Buyers ask
Frequently asked
questions
How much does this machine cost?
Factory-direct pricing depends on your configuration — width, output, layer or color count and automation level. Send us your target specs and we confirm an exact price within one business day.
What affects the price of this machine?
The main price drivers are machine size and output, number of layers or colors, servo versus stepper drives, automation features, certifications (CE/EAC), voltage adaptation, and shipping and installation terms.
What bag sizes can this machine produce?
Bag size ranges are listed in the spec sheet — typically up to the width and length shown for the model. The machine is adjusted for your bag dimensions during commissioning.
What is the production speed?
Speed is shown in the spec sheet (cycles per minute). Actual output depends on bag size and film material; daily output estimates are included in the quotation.
How long is delivery?
Typical delivery is 15–30 days from order confirmation, depending on the configuration and current production schedule. We confirm the exact lead time in the quotation.
Is the machine CE certified?
Yes. Our machinery is assessed to the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. The certificate of conformity is provided with the machine.
Can it run different bag types?
Each model is built for a specific bag family (T-shirt, zipper, garment, garbage, side-seal, etc.). If you produce multiple bag types, tell us your mix and we will recommend the right machine or line.
Do you provide installation and training?
Yes. Our engineers supervise installation and commissioning on site, run the first production trials and train your operators — on-site or remotely.
