ABA Film Blowing Machine
- Film Width100-600 mm300-1000 mm400-1200 mm
- Max Output40-60 kg/h60-100 kg/h60-120 kg/h
Home/Production Lines/Garbage Bag Production Line
Production line
Garbage Bag Production Line
ABA or three-layer film, optional printing and a high-speed garbage bag machine — with the granulator that makes the loop profitable.
Stage
Garbage Bag Production Line
Stage 01 — Film blowing
Film blowing
ABA co-extrusion lets you use recycled filler in the middle layer; IBC adds output and gauge control.
Ibc 3 Layer Film Blowing Machine
- Max Output500 kg/h
- Film Width (Folded)2600mm
- Thickness Range0.025 – 0.15mm
Stage 02 — Printing
Printing
One to four colors for drawstring and printed refuse bags.

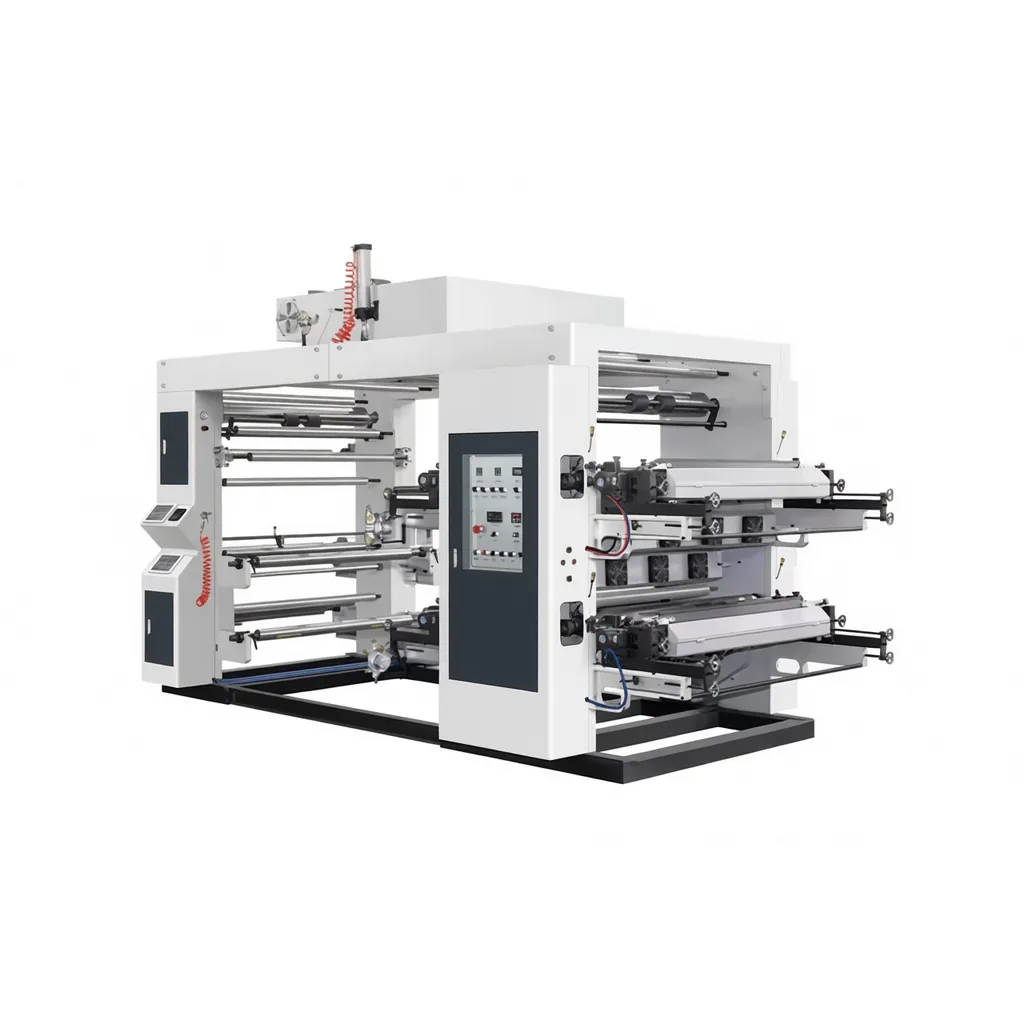

YTL 41000 Four-Color Flexo Printing Machine
- Max. Width of Material1000 mm
- Max. Width of Printing950 mm
- Mechanical Speed10 – 100 m/min
Stage 03 — Bag making
Bag making
70–150 bags/min, up to 800 mm open width, for thin-film drawstring and refuse bags.
Dr Garbage Bag Making Machine
- Bag making speed70- 150 pcs/min
- Maximum bag making width(bag open)800mm
- Bag making thickness0.008-0.03mm
Stage 04 — Recycling
Recycling
Closed-loop is the core of a garbage bag line — scrap grade is forgiving and regrind economics are direct.
Plastic Granulating Machine
- Screw Speed10–100 rpm10–100 rpm10–100 rpm10–100 rpm
- Output150–200 kg/hr200–250 kg/hr300–350 kg/hr450–500 kg/hr
Capacity example
Capacity example
Sample sizing from published machine specs. Exact output depends on material, width and configuration — confirmed in the proposal.
| Parameter | Details |
|---|---|
| Film output | 40 – 500 kg/h |
| Print speed | 10 – 70 m/min |
| Bag speed | 70 – 150 bags/min |
| Recycling output | 150 – 500 kg/h |
Line options
ABA middle layer with recycled filler1–4 color printDrawstring punching800 mm bag widthInline granulator
Closed-loop recycling
Garbage bag film tolerates recycled content well. Edge trim and start-up scrap are reground and fed back at a controlled ratio, cutting material cost directly.
Line questions
Line questions
What film is used for garbage bags?
HDPE and LDPE film, usually with a recycled or filled middle layer on ABA lines. Thickness typically 0.008–0.03 mm for retail refuse bags.
What bag sizes are possible?
Up to 800 mm open bag width on the DR machine; length is set by the cutting program.
How fast is the bag machine?
70–150 bags/min depending on bag size and film thickness.
Can I print on garbage bags?
Yes — 1 to 4 colors with the YTL flexo press, in line or as a separate pass.
Why is recycling recommended?
Garbage bag film accepts a high share of regrind, so the granulator pays back quickly and reduces raw material cost.
Build My Line
Build My Line
Full-line quote
Get a full-line quote
Send your daily bag target and film specs — we map the whole line and quote every stage.
Get the line quote →
